4.8. Gus walks!

Relevant to Blender v2.31

The single step in-place is the core of a walk, and once you have defined one there are techniques to make a character walk along a complex path. But, for the purpose of our Quick Start, this single step in- place is enough.

Change to the Rendering Buttons (F10) and set the animation start and end to 1 and 40 respectively (Figure 4-67). Because frame 41 is identical to frame 1, we only need to render frames from 1 to 40 to produce the full cycle.

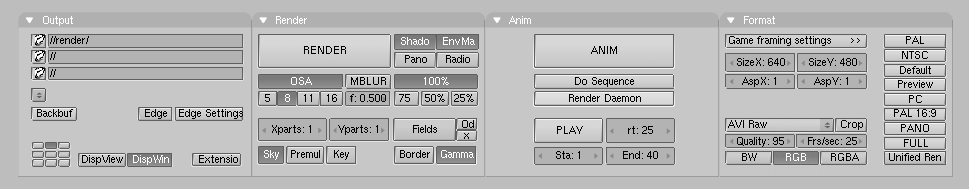

Figure 4-67. Setting the Rendering Buttons for an animation.

2. Select AVI Raw as the file type in Format Panel (Figure 4-67). While this is generally not the best choice, mainly for file size issues (as will be explained later on), it is fast and it will run on any machine, so it suits our needs. (You can also select AVI Jpeg to produce a more compact file, but using lossy Jpeg compression and obtaining a movie that some external render might not be able to play).

3. Finally, press ANIM button in Anim Panel. Remember that all the layers that you want to use in the animation must be shown! In our case, these are layers 1 and 10.

TipStopping a Rendering

If you make a mistake, like forgetting to set layer 10 to on, you can stop the rendering process with the ESC key.

Our scene is pretty simple, and Blender will probably render each of the 40 images in a few seconds. Watch them as they appear.


Of course you can always render each of your animation frames as a still by selecting the frame you wish to render and pressing the RENDER button.

Once the rendering is complete you should have a file named 0001_0040.avi in a render subdirectory of your current directory - the one containing your .blend file. You can play this file directly within Blender by pressing the Play button beneath the ANIM button (Figure 4-67). The animation will automatically cycle. To stop it press ESC.

We have produced only a very basic walk cycle. There is much more in Blender, as you'll soon discover!
